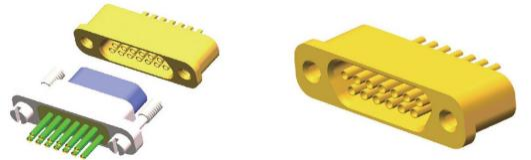

J30JM1-9ZK2-Q1 Micro Rectangular Connector 9 Contact Socket Receptacle

Product Categories

Wuxi Juhuili Technology Development Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: J30JM19ZK2Q1 Micro Rectangular Connector 9 Contact Socket Receptacle
Brand: Jovelix
Price: 10 USD

Contact resistance : ≤ 15mΩ

Brand Name : Jovelix

MOQ : 10pcs

Price : 10$-500$

Delivery Time : 2-9weeks

Packaging Details : standard export package

Impact : 735m/s²

Mechanical life : 500 times

Insulation resistance : ≥ 5000MΩ@100VDC

Certification : AS9001

Media dielectric voltage : 300V

Rated current : 3A

Accelerated speed : 735m/s²

Vibrate : 10-2000Hz 196m/s2

Relative humidity : 95% at +40°C

Model Number : J30JM1-9ZK2-Q1

Place of Origin : China

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000pcs per month

Ambient temperature : -55℃~+125℃

Contact Now

Glass-Sintered Gas-Sealed Rectangular Electrical Connector

J30JM1 Hermetic Series Micro-Rectangular Electrical Connectors

Product Features

The product socket is a gas-sealed socket with a glass medium material and a contact spacing of 1.27 mm; the entire socket is gold-plated.
Number of cores: available in nine specifications - 5, 9, 11, 13, 15, 21, 25, 31, and 37 cores.
The accompanying plug employs a stranded elastic pin (twisted pin), ensuring smooth insertion and removal.
The cross-sectional area of the wire core in the plug section is 0.1 mm²–0.15 mm²
The product socket has excellent air tightness, with air leakage rate of 1.0* 10-3Pa.cm3/s
It features small size and excellent vibration and shock resistance.

The main technical specifications of the product comply with the requirements of GJB2446.

Executive Standard: GJB2446A

Arrangement of Contact Layout (Viewed from the mating end of socket)
