J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector

MOQ : 10pcs

Model Number : J30J-9ZKSK

Place of Origin : China

Brand Name : Jovelix

Delivery Time : 2-9weeks

Vibration : 10 –2000 Hz, acceleration 196 m/s²

Payment Terms : L/C,T/T,Western Union

Withstand voltage : 800 V

Supply Ability : 10000pcs per month

Mechanical life : 2000 cycles

Price : 10$-500$

Contact resistance : ≤ 10mQ

Acceleration : 735 m/s²

Shock : 735 m/s², 11 ms

Packaging Details : standard export package

Operating temperature : 55 ℃ to + 125 ℃

Insulation resistance : ≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)

Tightening torque : 0.25 –0.3 N·m

Mounting torque : 0.35 –0.4 N·m

Certification : AS9001

Rated current : 3 A

Contact Now

J30J series
Micro Rectangular Electrical Connector
Product Introduction
  • Compliant with GJB2446A (equivalent to MIL-C-83513), corresponding to the U.S. MDM series
  • Contacts adopt elastic stranded pins (commonly called twist pins).
  • High contact density: transverse pitch 1.27 mm, row spacing 1.1 mm.
  • Metal shielding shell, optional metal rear cover.

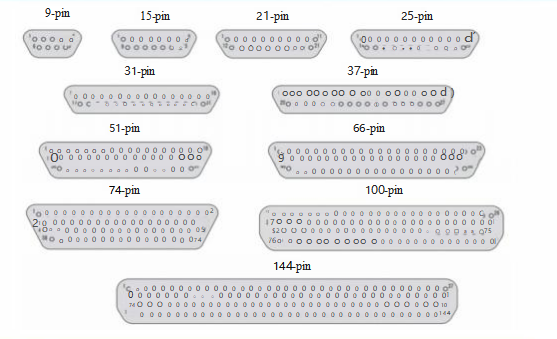

  • 11 specifications: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144 pins.
  • Board-mount types have tail modifications for PCB hole spacing.
  • Flexible mounting with various accessories for different structures.
Product Features
Functions and Applications:
  • High-density, lightweight, miniaturized for reliable interconnection: Cable to cable; Cable to PCB; PCB to PCB.
Operating Environment:
  • This product can withstand harsh environments such as strong vibrations and impacts, and is particularly suitable for application scenarios with strict requirements on installation space and equipment lightweighting.

Considering electrical performance, contact density, adaptability, cost and other factors, the J30J series is currently the best and most well-balanced rectangular electrical connector in overall performance.

J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector

Receptacle

J30J-9,15,21,25,31,37,51,66,74,100,144ZKS

J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector

Receptacle Model

A

B

C

D

J30J-9ZKS

19.6

14.3

7.6

/

J30J-15ZKS

23.5

18.2

7.6

/

J30J-21ZKS

27.4

22

7.6

/

J30J-25ZKS

29.8

24.5

7.6

J30J-31ZKS

33.6

28.3

7.6

/

J30J-37ZKS

37.4

32.2

7.6

J30J-51ZKS

36.4

30.86

8.7

5

J30J-66ZKS

42.9

37.3

8.7

5

J30J-74ZKS

38.8

33.5

9.7

5

J30J-100ZKS

54.7

45.7

9.7

5

J30J-144ZKS

66.6

58.6

9.7

5
