J30J-15ZKP-A3 Micro D Rectangular Connector 15 Socket Contacts Receptacle A3 Type

Product Categories
Wuxi Juhuili Technology Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

J30J-15ZKP-A3 Micro D Rectangular Connector 15 Socket Contacts Receptacle A3 Type

  • 1
  • 2
  • 3

Delivery Time : 2-9weeks

Model Number : J30J-15ZKP-A3

Insulation resistance : ≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)

Mechanical life : 2000 cycles

Certification : AS9001

Withstand voltage : 800 V

Shock : 735 m/s², 11 ms

Supply Ability : 10000pcs per month

Place of Origin : China

Packaging Details : standard export package

Operating temperature : 55 ℃ to +125 ℃

Brand Name : Jovelix

Payment Terms : L/C,T/T,Western Union

Rated current : 3 A

Acceleration : 735 m/s

Recommended torques for locking screws : Tightening torque: 0.25–0.3 N·m; Mounting torque: 0.35–0.4 N·m

Price : 10$-500$

Vibration : 10–2000 Hz, acceleration 196 m/s

MOQ : 10pcs

Contact resistance : ≤ 10mQ

Contact Now

J30J series high-density micro rectangular electrical connectors are designed for reliable signal and circuit interconnection in compact electronic equipment. The series is compliant with GJB2446A, equivalent to MIL-C-83513, and corresponds to the MDM-type micro rectangular connector system.

The connector is built with elastic stranded pin contacts, commonly referred to as twist pin contacts. This contact design provides stable electrical contact, reliable mating performance, and improved adaptability to vibration and shock conditions. The high-density layout features a 1.27 mm horizontal pitch and 1.1 mm row spacing, helping engineers achieve more circuit connections in a smaller interface area.

The connector body uses a metal shielding shell for improved mechanical strength and shielding performance. Depending on assembly requirements, a metal rear cover may be added for cable protection and structural reinforcement. The J30J series is available in 11 contact arrangements: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 pins, providing flexible options for different equipment designs.

The product can be used for cable-to-cable, cable-to-PCB, and PCB-to-PCB applications. Board-mount models can be adjusted with tail modifications to match different printed circuit board hole spacing. With the advantages of miniaturization, high contact density, lightweight construction, flexible mounting accessories, and reliable environmental performance, the J30J series is a well-balanced rectangular connector solution for applications requiring compact installation, stable electrical performance, and durable interconnection.

Contact Arrangement (view from mating face of pin insulator)

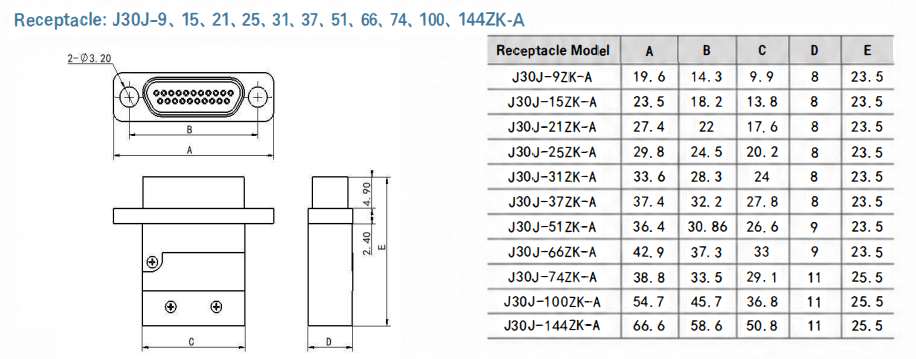

J30J-15ZKP-A3 Micro D Rectangular Connector 15 Socket Contacts Receptacle A3 Type
J30J Series Plug and Receptacle Classification Table
Plug/Receptacle Type Basic Designation Structural Features Remarks Page No.
Crimp Type Basic Type Plug J30J-TJ
Receptacle J30J-ZK		 Metal shell,wire crimp termination,straight cable outlet Locking component types may be selected according to specific requirements
Modified Type Plug J30J-TJ-A
Receptacle J30J-ZK-A		 Compared with J30J-ZK/TJ products,a straight cable clamp is added at the rear of the product, and the cable is covered with a metal protective sleeve
Plug J30J-TJ-C
Receptacle J30J-ZK-C		 Compared with J30J-ZK/TJ products,the wire exits at a 90°angle
Plug J30J-TJ-C1
Receptacle J30J-ZK-C1		 On the basis of the original J30J series crimp-wire products,an angled cable clamp is added, the wire bundle is covered with a metal protective sleeve,and there is one cable outlet on the same side
Plug J30J-TJ-C2
Receptacle J30J-ZK-C2		 Compared with J30J-ZK-C1/TJ-C1 products,the outlet direction is opposite;all other features are the same
Plug J30J-TJ-C3
Receptacle J30J-ZK-C3		 On the basis of the original J30J series crimp-wire products,an angled cable clamp is added, the wire bundle is covered with a metal protective sleeve,and there are two cable outlets on the same side
Plug J30J-TJ-C4
Receptacle J30J-ZK-C4		 On the basis of the original J30J series crimp-wire products,an angled cable clamp rear cover is added,and there are cable outlets on both sides
Plug J30J-TJ-D
Receptacle J30J-ZK-D		 Compared with J30J-ZK/TJ products,an anti-rotation slot is added to the square flange
Plug J30J-TJ-AD
Receptacle J30J-ZK-AD		 Compared with J30J-ZK/TJ-A products,anti-slip grooves are added on the side of the shell,and an anti-rotation slot is added to the square flange
Plug J30J-TJ-Q
Receptacle J30J-ZK-Q		 Compared with J30J-ZK/TJ products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
Plug J30J-TJ-Q8
Receptacle J30J-ZK-Q8		 Compared with J30J-ZK/TJ products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
Plug J30J-TJ-AQ8
Receptacle J30J-ZK-AQ8		 Compared with J30J-ZK-A/TJ-A products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
Solder Type Plug J30J-TJS
Receptacle J30J-ZKS		 Compared with J30J-ZK/TJproducts,the contact termination form is solder cup type
Straight PCB Type Plug J30J-TJN
Receptacle J30J-ZKN		 The contact termination form is changed to straight PCB type,with PCB grid spacing 2.54*2.54,recommended PCB thickness (1.6-2.5 mm)
Plug J30J-TJN-J
Receptacle J30J-ZKN-J		 The contact termination form is changed to straight PCB type,with PCB grid spacing 1.27*2.54,recommended PCB thickness (1.6-2.5 mm)
Plug J30J-TJN(X)
Receptacle J30J-ZKN(X)		 Compared with J30J-ZKN/TJN,the pin length is increased,recommended PCB thickness(1.6-3.5 mm)

J30J-15ZKP-A3 Micro D Rectangular Connector 15 Socket Contacts Receptacle A3 Type
