The J30J micro rectangular connector series provides a miniature and high-density electrical connection solution for electronic devices with strict requirements on size, weight, and connection reliability. The product is designed according to GJB2446A, equivalent to MIL-C-83513, and is structurally similar to the MDM series micro rectangular connector.
The contact system adopts elastic stranded pin technology, also referred to as twist pin technology. This structure helps ensure stable contact force, reliable mating, and consistent circuit continuity, especially in equipment exposed to vibration, impact, or repeated connection cycles. With 1.27 mm transverse spacing and 1.1 mm row spacing, the connector can support multiple circuits in a compact rectangular interface.
A metal shielding shell is used to enhance the connector’s structural strength and shielding capability. Optional metal rear covers are available for cable assembly, protection, and installation requirements. The series offers 11 contact layouts, including 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 contacts, allowing flexible selection according to circuit density and product structure.
The J30J series supports wire-to-wire, wire-to-board, and board-to-board connection methods. PCB mounting types can be modified with suitable tail structures to meet different board hole spacing. By combining miniaturization, high contact density, light weight, installation flexibility, and dependable environmental performance, this series offers a balanced rectangular connector solution for compact instruments, control systems, communication equipment, test devices, and electronic modules.
Contact Arrangement (view from mating face of pin insulator)
J30J Series Plug and Receptacle Classification Table
|
Plug/Receptacle Type
|
Basic Designation
|
Structural Features
|
Remarks
|
Page No.
|
|
Crimp Type
|
Basic Type
|
Plug J30J-TJ
Receptacle J30J-ZK
|
Metal shell,wire crimp termination,straight cable outlet
|
Locking component types may be selected according to specific requirements
|
|
|
Modified Type
|

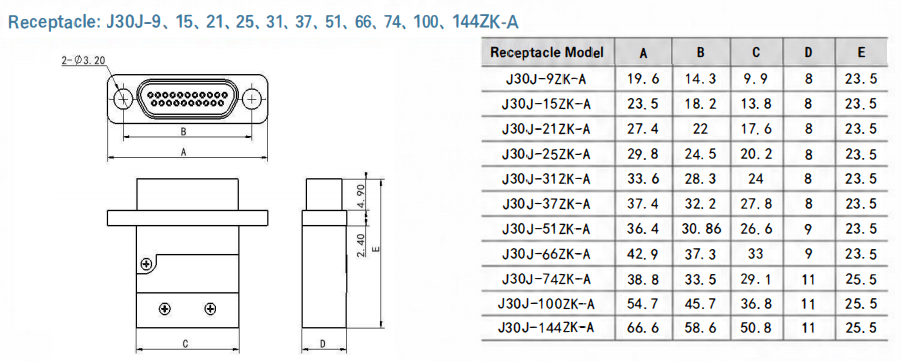

Plug J30J-TJ-A
Receptacle J30J-ZK-A
|
Compared with J30J-ZK/TJ products,a straight cable clamp is added at the rear of the product, and the cable is covered with a metal protective sleeve
|
|
|
Plug J30J-TJ-C
Receptacle J30J-ZK-C
|
Compared with J30J-ZK/TJ products,the wire exits at a 90°angle
|
|
|
Plug J30J-TJ-C1
Receptacle J30J-ZK-C1
|
On the basis of the original J30J series crimp-wire products,an angled cable clamp is added, the wire bundle is covered with a metal protective sleeve,and there is one cable outlet on the same side
|
|
|
Plug J30J-TJ-C2
Receptacle J30J-ZK-C2
|
Compared with J30J-ZK-C1/TJ-C1 products,the outlet direction is opposite;all other features are the same
|
|
|
Plug J30J-TJ-C3
Receptacle J30J-ZK-C3
|
On the basis of the original J30J series crimp-wire products,an angled cable clamp is added, the wire bundle is covered with a metal protective sleeve,and there are two cable outlets on the same side
|
|
|
Plug J30J-TJ-C4
Receptacle J30J-ZK-C4
|
On the basis of the original J30J series crimp-wire products,an angled cable clamp rear cover is added,and there are cable outlets on both sides
|
|
|
Plug J30J-TJ-D
Receptacle J30J-ZK-D
|
Compared with J30J-ZK/TJ products,an anti-rotation slot is added to the square flange
|
|
|
Plug J30J-TJ-AD
Receptacle J30J-ZK-AD
|
Compared with J30J-ZK/TJ-A products,anti-slip grooves are added on the side of the shell,and an anti-rotation slot is added to the square flange
|
|
|
Plug J30J-TJ-Q
Receptacle J30J-ZK-Q
|
Compared with J30J-ZK/TJ products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
|
|
|
Plug J30J-TJ-Q8
Receptacle J30J-ZK-Q8
|
Compared with J30J-ZK/TJ products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
|
|
|
Plug J30J-TJ-AQ8
Receptacle J30J-ZK-AQ8
|
Compared with J30J-ZK-A/TJ-A products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
|
|
|
Solder Type
|
Plug J30J-TJS
Receptacle J30J-ZKS
|
Compared with J30J-ZK/TJproducts,the contact termination form is solder cup type
|
|
|
|
Straight PCB Type
|
Plug J30J-TJN
Receptacle J30J-ZKN
|
The contact termination form is changed to straight PCB type,with PCB grid spacing 2.54*2.54,recommended PCB thickness (1.6-2.5 mm)
|
|
|
|
Plug J30J-TJN-J
Receptacle J30J-ZKN-J
|
The contact termination form is changed to straight PCB type,with PCB grid spacing 1.27*2.54,recommended PCB thickness (1.6-2.5 mm)
|
|
|
Plug J30J-TJN(X)
Receptacle J30J-ZKN(X)
|
Compared with J30J-ZKN/TJN,the pin length is increased,recommended PCB thickness(1.6-3.5 mm)
|
|
