J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector

Product Categories

Wuxi Juhuili Technology Development Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: J30V215ZKW 15 Pin Micro Rectangular Female Socket Connector
Brand: Jovelix
Price: 10 USD

Arandomvibration : powerspectral densityof 0.4G/Hz,totalaccelerationrootmeansquarevalueof23.1G

Place of Origin : China

MOQ : 10pcs

Supply Ability : 10000pcs per month

Delivery Time : 2-9weeks

Mechanical lifespan : 2000 cycles

Medium withstand voltage : 800V

Brand Name : Jovelix

Model Number : J30V2-15ZKW

Price : 10$-500$

Payment Terms : L/C,T/T,Western Union

Packaging Details : standard export package

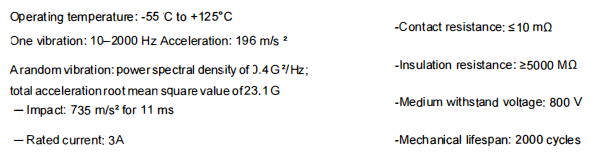

Rated current : 3A

Certification : AS9001

Insulation resistance : 25000 MQ

Operatingtemperature : -55 Cto +125°C

Impac : 735 m/s² for 11 ms

Contactresistance : ≤10 mΩ

One vibration : 10-2000 HzAcceleration: 196 m/s ²

Contact Now

J30V2 Series Micro Rectangular Electrical Connector

Brief Introduction to features

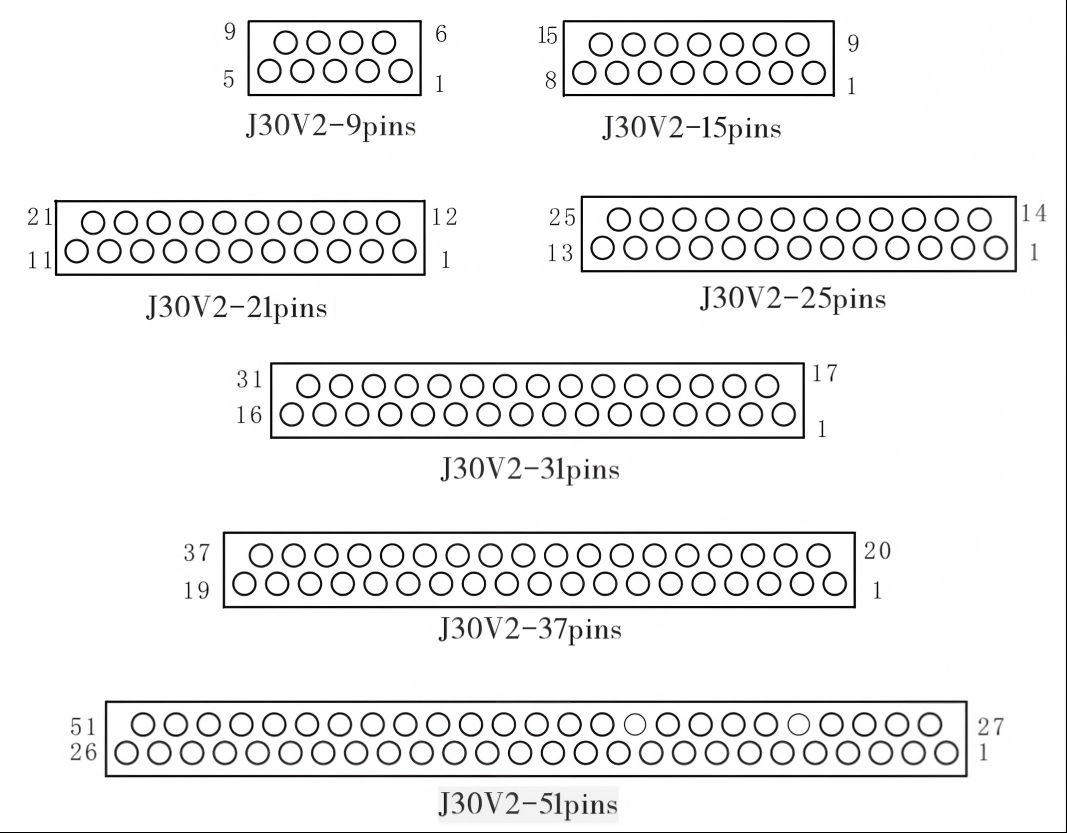

Number of pins: Seven specifications available-9,15,21,25,31,37, and 51 pins.
A stranded elastic pin (commonly known as a twisted pin) was used, with a spacing of 1.27 mm and minimal external dimensions.
The base materialis made of PPS, exhibiting excellent environmental resistance.
The cross-secional area of the conductor pin is 0.1 mm²to 0.15 mm²
The locking components of this product series are designed for fixed pairing.

Main Technical Characteristics

Phylogenetic Tree Arrangement
