High Density Shielded 15 Core Micro Rectangular Plug J30-15TJL Aviation Electrical Connector

  • 1
  • 2
  • 3

Certification : AS9001

Delivery Time : 2-9weeks

Shock : acceleration 735 m/s², 11 ms

Rated operating current : 3 A

Payment Terms : L/C,T/T,Western Union

Brand Name : Jovelix

Contact resistance : ≤ 10 mΩ

Vibration : frequency 10–2000 Hz, acceleration 196 m/s²

Insulation resistance : ≥ 5000 MΩ at room temperature

Operating temperature : -55℃ to +125℃

Withstand voltage : 800 V at room temperature

Supply Ability : 10000pcs per month

Packaging Details : standard export package

Model Number : J30-15TJL

Place of Origin : China

MOQ : 10pcs

Price : 10$-500$

Relative humidity : up to 95% at 40℃

Mechanical life : 500 cycles

Contact Now

J30 Series Micro-Rectangular Electrical Connector
Product Introduction
  • Complies with GJB2446
  • Male contacts adopt elastic stranded pins (twist-pin contacts)
  • High-density contacts with a pitch of 1.27 mm
  • The product uses a plastic housing, equivalent to the U.S. MD series
  • Seven specifications available, ranging from 9 pins to 51 pins
  • Modified rear ends are available for printed circuit board (PCB) applications
Product Information
Product Application:

The product features high density, lightweight design, and miniaturization, enabling reliable interconnections between internal system cables, between cables and printed circuits boards (PCBs), and between PCBs themselves within the electrical circuit system.

Operating Environment:

The product can withstand harsh environments such as strong vibration and shock, and is especially suitable for applications with special requirements for space and equipment lightweighting.

Product Classification

The contact-to-wire connection method of the product is crimp type.

J30 Series Straight PCB Plug and Receptacle:

Classified into three types according to PCB grid spacing (column spacing * row spacing):

  • Type N: 2.54*1.6
  • Type N1: 2.54*2.54
  • Type N-J: 1.27*2.54
J30 Series Right-Angle PCB Plugs and Receptacles:

Classified into two types according to PCB grid spacing (column spacing * row spacing):

  • Type W: 2.54*2.54
  • Type W-J: 1.27*2.54
Main Technical Features
Operating temperature -55℃ to +125℃
Relative humidity up to 95% at 40℃
Rated operating current 3 A
Contact resistance ≤ 10 mΩ
Insulation resistance ≥ 5000 MΩ at room temperature
Withstand voltage 800 V at room temperature
Vibration frequency 10–2000 Hz, acceleration 196 m/s²
Shock acceleration 735 m/s², 11 ms
Mechanical life 500 cycles

High Density Shielded 15 Core Micro Rectangular Plug J30-15TJL Aviation Electrical Connector

Contact arrangement (viewed from the plug mating surface)

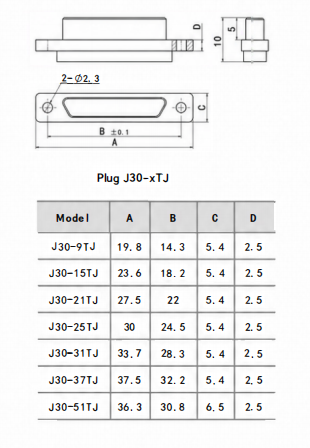

High Density Shielded 15 Core Micro Rectangular Plug J30-15TJL Aviation Electrical Connector
