J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle

Name: J30J51ZKPA3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle
Brand: Jovelix
Price: 10 USD

Quality J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle for sale

Contact resistance : ≤ 10mQ

Insulation resistance : ≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)

Price : 10$-500$

Model Number : J30J-51ZKP-A3

Packaging Details : standard export package

Rated current : 3 A

Shock : 735 m/s², 11 ms

MOQ : 10pcs

Delivery Time : 2-9weeks

Place of Origin : China

Recommended torques for locking screws : Tightening torque: 0.25–0.3 N·m; Mounting torque: 0.35–0.4 N·m

Acceleration : 735 m/s

Supply Ability : 10000pcs per month

Withstand voltage : 800 V

Certification : AS9001

Brand Name : Jovelix

Payment Terms : L/C,T/T,Western Union

Mechanical life : 2000 cycles

Vibration : 10–2000 Hz, acceleration 196 m/s

Operating temperature : 55 ℃ to +125 ℃

Contact Now

The J30J series micro rectangular electrical connectors are engineered for compact electronic systems that require reliable multi-circuit interconnection within a small mounting space. The series is compliant with GJB2446A, equivalent to MIL-C-83513, and corresponds to the MDM-style micro rectangular connector platform.
This connector series uses elastic stranded pin contacts, commonly known as twist pins, to provide stable electrical contact, reliable insertion performance, and improved adaptability under vibration and shock conditions. The compact contact arrangement features a 1.27 mm transverse pitch and 1.1 mm row spacing, allowing high-density wiring while keeping the connector size small and lightweight.
The metal shielding shell improves mechanical protection and signal shielding performance. For cable termination or additional structural protection, a metal rear cover can be selected. The series includes 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 contact configurations, covering a wide range of circuit connection requirements.
J30J connectors can be used for cable-to-cable, cable-to-PCB, and PCB-to-PCB interconnection. Board-mount versions can be supplied with adjusted tail designs to match different PCB hole layouts. With high contact density, compact size, lightweight structure, flexible mounting accessories, and strong resistance to vibration and impact, the J30J series is suitable for precision electronic equipment where space saving and dependable connection are essential.

Contact Arrangement (view from mating face of pin insulator)

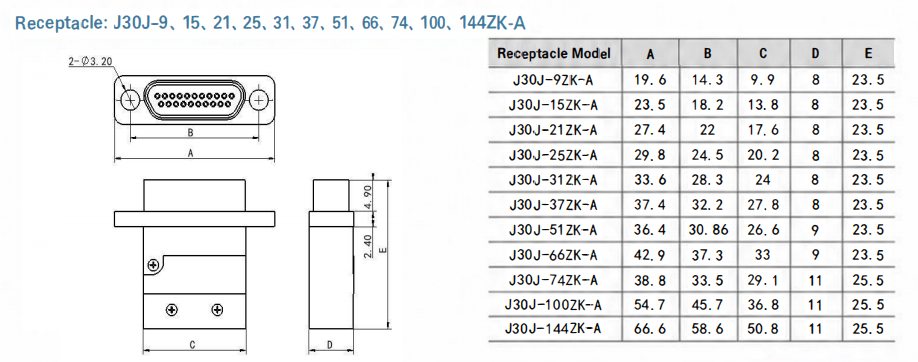

J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle

J30J Series Plug and Receptacle Classification Table

Plug/Receptacle Type		Basic Designation	Structural Features	Remarks	Page No.
Crimp Type	Basic Type	Plug J30J-TJ Receptacle J30J-ZK	Metal shell,wire crimp termination,straight cable outlet	Locking component types may be selected according to specific requirements
	Modified Type	Plug J30J-TJ-A Receptacle J30J-ZK-A	Compared with J30J-ZK/TJ products,a straight cable clamp is added at the rear of the product, and the cable is covered with a metal protective sleeve
		Plug J30J-TJ-C Receptacle J30J-ZK-C	Compared with J30J-ZK/TJ products,the wire exits at a 90°angle
		Plug J30J-TJ-C1 Receptacle J30J-ZK-C1	On the basis of the original J30J series crimp-wire products,an angled cable clamp is added, the wire bundle is covered with a metal protective sleeve,and there is one cable outlet on the same side
		Plug J30J-TJ-C2 Receptacle J30J-ZK-C2	Compared with J30J-ZK-C1/TJ-C1 products,the outlet direction is opposite;all other features are the same
		Plug J30J-TJ-C3 Receptacle J30J-ZK-C3	On the basis of the original J30J series crimp-wire products,an angled cable clamp is added, the wire bundle is covered with a metal protective sleeve,and there are two cable outlets on the same side
		Plug J30J-TJ-C4 Receptacle J30J-ZK-C4	On the basis of the original J30J series crimp-wire products,an angled cable clamp rear cover is added,and there are cable outlets on both sides
		Plug J30J-TJ-D Receptacle J30J-ZK-D	Compared with J30J-ZK/TJ products,an anti-rotation slot is added to the square flange
		Plug J30J-TJ-AD Receptacle J30J-ZK-AD	Compared with J30J-ZK/TJ-A products,anti-slip grooves are added on the side of the shell,and an anti-rotation slot is added to the square flange
		Plug J30J-TJ-Q Receptacle J30J-ZK-Q	Compared with J30J-ZK/TJ products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
		Plug J30J-TJ-Q8 Receptacle J30J-ZK-Q8	Compared with J30J-ZK/TJ products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
		Plug J30J-TJ-AQ8 Receptacle J30J-ZK-AQ8	Compared with J30J-ZK-A/TJ-A products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
Solder Type		Plug J30J-TJS Receptacle J30J-ZKS	Compared with J30J-ZK/TJproducts,the contact termination form is solder cup type
Straight PCB Type		Plug J30J-TJN Receptacle J30J-ZKN	The contact termination form is changed to straight PCB type,with PCB grid spacing 2.54*2.54,recommended PCB thickness (1.6-2.5 mm)
		Plug J30J-TJN-J Receptacle J30J-ZKN-J	The contact termination form is changed to straight PCB type,with PCB grid spacing 1.27*2.54,recommended PCB thickness (1.6-2.5 mm)
		Plug J30J-TJN(X) Receptacle J30J-ZKN(X)	Compared with J30J-ZKN/TJN,the pin length is increased,recommended PCB thickness(1.6-3.5 mm)
