MDC1-15SN Micro D Rectangular Connector 15 Contact SN Type

  • 1
  • 2
  • 3

Price : 10$-500$

Delivery Time : 2-9weeks

Environmental temperature : -55°C to +125°C

Relative humidity : +40°C, 98%

Mechanical lifespan : 500 insertion and removal cycles

Model Number : MDC1-15SN

Payment Terms : L/C,T/T,Western Union

Place of Origin : China

Packaging Details : standard export package

Rated current (maximum) : 2A Max

cInsulation resistance : ≥5000 MΩ

Brand Name : Jovelix

Low pressure : 4.4 KPa, 150 V

Pressure rating : 500V

Vibration : 10 Hz to 2000 Hz, 196 m/s 2

Contact resistance : ≤12 mΩ

MOQ : 10pcs

Certification : AS9001

Supply Ability : 10000pcs per month

Impact : 490 m/s²

Contact Now

MDC1 Series Micro Rectangular Electrical Connector

The MDC1 Series Micro Rectangular Electrical Connector is a small-size, lightweight, high-density connector designed for reliable electrical interconnection. It features 1 mm contact pitch, 0.866 mm row spacing, compact structure, high standardization, and flexible pin configurations.

This series is available in 5, 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100-core options. It supports conductor crimping cross-sections from 0.035 mm² to 0.1 mm², providing flexible wiring solutions for miniature electronic systems.

With operating temperature from -55°C to +125°C, relative humidity resistance of 98% at +40°C, low-pressure performance at 4.4 KPa / 150 V, maximum rated current of 2 A, voltage rating of 500 V, and 500-cycle mechanical durability, the MDC1 Series is suitable for industrial electronics, communication equipment, control systems, instrumentation, and compact signal interconnection applications.

Composition of MDC1 series models
Order number Classification Feature Category Content Label Code
1 Subject Code Micro-rectangular connector MDC1
2 Number of contact points Number of contact points Represented in Arabic numerals
3 Types of Contact Parts Pin contact piece P
Plug contact piece S
4 Product type Closed type M
5 End termination type Crimping(with wire) Not labeled
Weld S

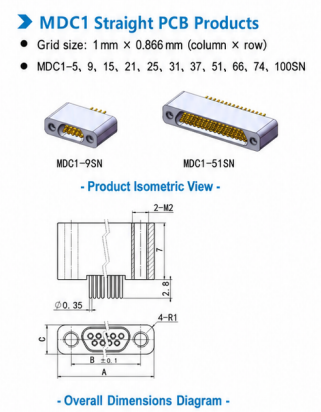

Straight PCB Solder Mount N
Right-angle PCB Solder Mount W
Vertical Label Type N1
6 Installation Attachment Free-end locking accessory L
Fixed-end installation accessory P

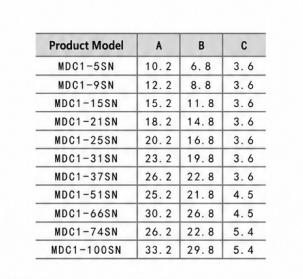

MDC1-15SN Micro D Rectangular Connector 15 Contact SN TypeMDC1-15SN Micro D Rectangular Connector 15 Contact SN Type
